Quantibody® Mouse Interleukin Array 1 Kit. Detects 20 Mouse Interleukins. Suitable for all liquid sample types.
Product Description
Specifications
| Size | 8 Sample Kit, 22 Sample Kit, 50 Sample Kit |
|---|---|
| Species | Mouse |
| Quantitative/Semi-Quantitative | Quantitative |
| Number of Targets Detected | 20 |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Other Body Fluids, Cell Lysates |
| Solid Support | Glass Slide |
| Method Of Detection | Fluorescence Laser Scanner |
| Design Principle | Sandwich-based |
| Estimated Lead Time | 1-2 business days |
| Shipping Type | Blue ice |
| Storage | -20°C |
Amazon Gift Cards!
$5 Amazon gift card in every kit box purchased.

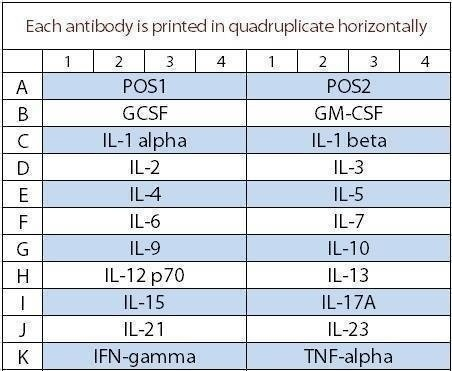

| Scroll over each target protein for more information | ||||
|---|---|---|---|---|
|
GCSF
|
GM-CSF
|
IFN-gamma
|
IL-1 alpha
(IL-1 F1)
|
IL-1 beta
(IL-1 F2)
|
|
IL-10
|
IL-12 p70
|
IL-13
|
IL-15
|
IL-17A
|
|
IL-2
|
IL-21
|
IL-23
|
IL-3
|
IL-4
|
|
IL-5
|
IL-6
|
IL-7
|
IL-9
|
TNF alpha
|
Application Notes
Suggested Application
Multiplexed Protein Detection; Biomarker Screening; Identifying Key Factors; Confirming Biological Process; Biomarker Validation; Validation of Antibody Array Results; Quantitative Protein Detection; Establishing Normal Range
Kit Components
- Mouse Interleukin Array Q1 Slide(s)
- Blocking Buffer
- Wash Buffer 1
- Wash Buffer 2
- Lyophilized Standard Mix
- Biotinylated Detection Antibody Cocktail
- Streptavidin-Conjugated Fluor
- Slide Washer/Dryer
- Adhesive Plastic Strips
- Manual
Other Materials Required
- Distilled or deionized water
- Small plastic boxes or containers
- Pipettors, pipette tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Aluminum foil
- Gene microarray scanner or similar laser fluorescence scanner
View Compatible Laser Scanners
Don't have a compatible scanner? RayBiotech now offers FREE scanning service for all RayBio glass slide antibody arrays! Learn More
Protocol Outline
- Dry the glass slide
- Prepare Standards
- Block array surface
- Incubate with Samples and Standards
- Incubate with Biotinylated Detection Antibody Cocktail
- Incubate with Streptavidin-Conjugated Fluor
- Disassemble the glass slide
- Scan with a gene microarray laser scanner
- Perform densitometry and analysis
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array slide(s), standard mix, detection antibody cocktail, and Cy3-Conjugated Streptavidin at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
Martin I., Caban-Hernandez K., Figueroa-Santiago O., Epsino A. Fasciola hepatica fatty acid binding protein inhibits TLR4 activation and suppresses the inflammatory cytokines induced by lipopolysaccharide in vitro and in vivo. J Immunol. 2015 Apr 15;194(8):3924-36. doi: 10.4049/jimmunol.1401182.
Species:
Mouse
Sample Type:
Serum (Septic Shock evaluation following LPS injection)
Otero M., Zayas B., Miranda E., et al. Immunomodulatory Response Triggered by the Alkaloids, 3-Amino- 7-Benzylbenzimidazo[3,2-a] Quinolinium Chloride (ABQ-48) and 3-Nitro- 7-Benzylbenzimidazo[3,2-a] Quinolinium Chloride (NBQ-48). J Cancer Res Therap Oncol 2013 , Vol 3: 103
Species:
Mouse
Sample Type:
Conditioned Media (Splenocytes treated with the various agents in title)
