Mpox Virus Proteins

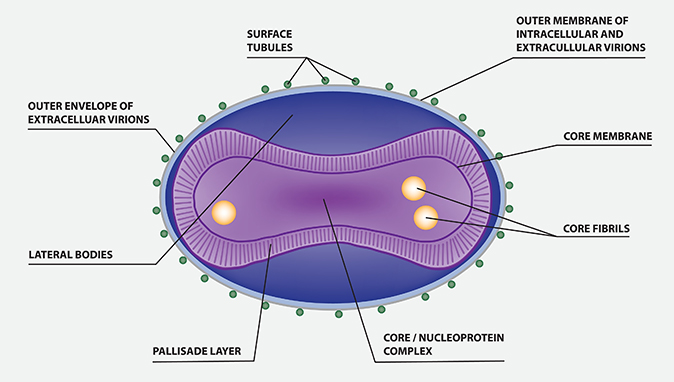

Mpox Virus (MPXV) is an enveloped double-stranded DNA virus that belongs to the genus Orthopoxvirus in the family Poxviridae. While mpox was first discovered in the colonies of monkey kept for research in 1958, first human case of mpox was registered in 1970. Mpox is thought to be endemic to West Africa and Central Africa. In 2003, there was a mpox outbreak outside of Africa and it occurred in the United States of America. Recently, mpox cases have been reported in multiple non-endemic countries raising awareness.

The 196,858-bp mpox virus genome consists of ~200 open reading frames with ≥60 amino acid residues. RayBiotech now offers 15 bacterial- or mammalian-derived mpox proteins. Recombinant proteins are key components in current infectious disease research. They are widely used for antibody and vaccine development and as key components in immunodiagnostic assays.

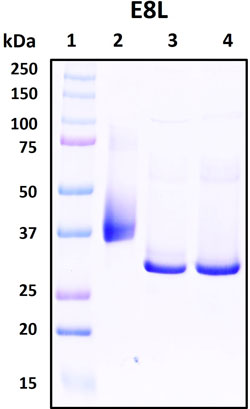

SDS-PAGE of Recombinant mpox Virus Cell Surface-binding Protein, E8L

Figure 1. Deglycosylation analysis of purified recombinant proteins. The same amount of purified proteins were untreated (Lane 2) or treated with protein deglycosylation enzymes under native (Lane 3) or reducing (Lane 4) conditions. Deglycosylation treatment resulted in a mobility shift of the protein to produce one reduced band at the expected size, thus indicating that the untreated recombinant protein (Lane 2) was glycosylated.

  • Lane 1: protein standard ladder (kDa).
  • Lane 2: untreated protein.
  • Lane 3: treated protein with deglycosylation enzymes under native conditions.
  • Lane 4: treated protein with deglycosylation enzymes under denature conditions.
Read More

RayBiotech Monkeypox Virus Recombinant Proteins

Targets* Expression Host
Bacteria HEK293 cells
A29L 230-01204 230-30237
A30L 230-01201 230-30235
A35R 230-01203 230-30238
B16R 230-01193 230-30236
C19L 230-01196
D6L 230-01194 230-30234
E8L 230-01195 230-30232
H3L 230-01192 230-30233
I1L 230-01198
L1R 230-01202
A5L   230-30283 (pre-order)†
B6R   230-30284 (pre-order)†
M1R   230-30285 (pre-order)†
A27L   230-30286 (pre-order)†
B5R   230-30287 (pre-order)†
D13L   230-30288 (pre-order)†

* If you are interested in other targets, please let us know (techsupport@raybiotech.com).
§ If you are interested in our monkeypox virus protein array test kits, please visit our website.
† We provide GMP-grade custom protein services for all products above. Please visit our website to request a formal QUOTE.

Lateral Flow Assay (LFA)

In the LFA assay, the monkeypox virus A29L antibody pair can detect Raybiotech recombinant A29L protein (Catalog no. 230-01204) at the sensitivity of 1 ng/ml, below. C, positive controls; T, A29L test line.

Features

  • Derived from mammalian cells (HEK293) and bacteria (E.coli)
  • C-Terminal and N-Terminal His-tags
  • Purity >95%
