RayBio® C-Series Human Receptor Tyrosine Kinase Phosphorylation Antibody Array 1 Kit. Detects 71 Human RTKs. Suitable for all liquid sample types but intended for use with cell and tissue lysates.
Product Description
Specifications
| Size | 2 Sample Kit, 4 Sample Kit, 8 Sample Kit |
|---|---|
| Species | Human |
| Quantitative/Semi-Quantitative | Semi-Quantitative |
| Number of Targets Detected | 71 |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Cell Lysates |
| Solid Support | Membrane |
| Method Of Detection | Chemiluminescence |
| Design Principle | Sandwich-based |
| Research Area | Post-Translational Modifications, Phosphorylation, PI3K-AKT Signaling |
| Estimated Lead Time | 1-2 business days |
| Shipping Type | Blue ice |
| Storage | -20°C |
Risk-Free Guarantee
We offer a 100% guarantee on all ELISA kits and membrane cytokine arrays.
Learn More
Amazon Gift Cards!
$5 Amazon gift card in every kit box purchased.

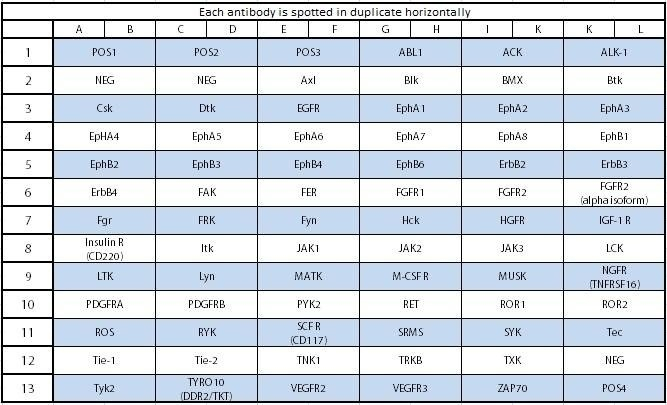

| Scroll over each target protein for more information | ||||
|---|---|---|---|---|
|
ABL1
|
ACK
|
ALK-1
|
Axl
|
Blk
|
|
BMX
|
Btk
|
Csk
|
Dtk
|
EGFR
|
|
EphA1
|
EphA2
|
EphA3
|
EphA4
|
EphA5
|
|
EphA6
|
EphA7
|
EphA8
|
EphB1
|
EphB2
|
|
EphB3
|
EphB4
|
EphB6
|
ErbB2
|
ErbB3
|
|
ErbB4
|
FAK
|
FER
|
FGFR1
|
FGFR2
|
|
FGFR2 alpha isoform
|
Fgr
|
FRK
|
Fyn
|
Hck
|
|
HGFR
|
IGF-1 R
|
Insulin R
(CD220)
|
Itk
|
JAK1
|
|
JAK2
|
JAK3
|
LCK
|
LTK
|
Lyn
|
|
MATK
|
M-CSF R
|
MUSK
|
NGFR
(TNFRSF16)
|
PDGFRA
|
|
PDGFRB
|
PYK2
|
RET
|
ROR1
|
ROR2
|
|
ROS
|
RYK
|
SCF R
(CD117/c-kit)
|
SRMS
|
SYK
|
|
Tec
|
Tie-1
|
Tie-2
|
TNK1
|
TRKB
|
|
TXK
|
Tyk2
|
TYRO10
(DDR2/TKT)
|
VEGFR2
|
VEGFR3
|
|
ZAP70
|
||||
Species Detected
Human
Application Notes
Suggested Application
Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker/ Key Factor Screening; Identifying Key Factors; Confirming a Biological Process
Kit Components
- Human RTK Phosphorylation Antibody Array C1 Membranes
- Blocking Buffer
- Wash Buffer 1
- Wash Buffer 2
- Biotinylated Anti-Phospho Tyrosine Detection Antibody
- Streptavidin-Conjugated HRP
- Detection Buffer C
- Detection Buffer D
- Lysis Buffer (1 x 5 ml)
- Protease Inhibitor Cocktail
- Phosphatase Inhibitor Cocktail II
- 8-Well Incubation Tray
- Plastic Sheets
- Array Templates
- Manual
Other Materials Required
- Pipettors, pipet tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Tissue Paper, blotting paper or chromatography paper
- Adhesive tape or Saran Wrap
- Distilled or de-ionized water
- A chemiluminescent blot documentation system (such as UVP??s ChemiDoc-It® or EpiChem II Benchtop Darkroom or GE's ImageQuant™ LAS 4000 or Amersham Imagers 600 and 680), X-ray Film and a suitable film processor, or another chemiluminescent detection system.
Protocol Outline
- Block membranes
- Incubate with Sample
- Incubate with Biotinylated Detection Antibody Cocktail
- Incubate with HRP-Conjugated Streptavidin
- Incubate with Detection Buffers
- Image with chemiluminescent imaging system
- Perform densitometry and analysis
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array membranes and 1X Blocking Buffer at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
Zhang H., Pelech S. Using protein microarrays to study phosphorylation-mediated signal transduction. Semin Cell Dev Biol. 2012 Oct;23(8):872-82. doi: 10.1016/j.semcdb.2012.05.009
Species:
Human
Sample Type:
N/A (Review reference, no sample type, just a reference to our arrays)
Kato K., Gong J., Iwama H., et al. The antidiabetic drug metformin inhibits gastric cancer cell proliferation in vitro and in vivo. Mol Cancer Ther. 2012 Mar;11(3):549-60. doi: 10.1158/1535-7163.MCT-11-0594
Species:
Human
Sample Type:
Cell Lysate (Human Gastric Cancer cell lines, MKN1, MKN45, and MKN74)
Shimokawa T, Seike M, Soeno C, et al. Enzastaurin has anti-tumour effects in lung cancers with overexpressed JAK pathway molecules. British Journal of Cancer 2012;106(5):867-875. doi:10.1038/bjc.2012.7.
Species:
Human
Sample Type:
Cell Lysate (Lung cancer cells lines treated with enzastaurin)
Zueva E., et al. Metastasis-focused cell-based SELEX generates aptamers inhibiting cell migration and invasion. Int J Cancer. 2011 15 February;128(4):797-804.
Species:
Hamster
Sample Type:
Cell Lysate (Lysates of modified hamster fibroblasts)
Guerra-Laso, José M., et al. "Macrophages from elders are more permissive to intracellular multiplication of Mycobacterium tuberculosis." Age 35.4 (2013): 1235-1250.
Species:
Human
Sample Type:
Cell Lysate (monocytes from elderly infected with TB)
Wang Z., Gao Q., Shi J., et al. Protein tyrosine phosphatase receptor S acts as a metastatic suppressor in hepatocellular carcinoma by control of epithermal growth factor receptor-induced epithelial-mesenchymal transition. Hepatology. 2015 Oct;62(4):1201-14. doi: 10.1002/hep.27911.
Species:
Human
Sample Type:
Cell Lysate (Human hepatic cellular carcinoma cell lines)
Perng, Diahn-Warng, et al. "Matrix metalloprotease-9 induces transforming growth factor-? 1 production in airway epithelium via activation of epidermal growth factor receptors." Life sciences 89.5 (2011): 204-212.
Species:
Human
Sample Type:
Cell Lysate (Airway epithelial cell)
Tirado-González, I., et al. "Galectin-1 influences trophoblast immune evasion and emerges as a predictive factor for the outcome of pregnancy." Molecular human reproduction 19.1 (2013): 43.
Species:
Human
Sample Type:
Cell Lysate (HIPEC cells )
Acquired resistance to sunitinib in human renal cell carcinoma cells is mediated by constitutive activation of signal transduction pathways associated with tumour cell proliferation
Species:
Human
Sample Type:
Conditioned Media (ACHN and sunitinib-resistant ACHN-derived cell lines (renal cell carcinoma lines), control and sunitinib treated samples)
Fischer I, Schulze S, Kuhn C, Friese K, Walzel H, Markert UR, Jeschke U. Inhibiton of RET and JAK2 Signals and Upregulation of VEGFR3 Phosphorylation in Vitro by Galectin-1 in Trophoblast Tumor Cells BeWo. Placenta 2009:30:1078-1082.
Species:
Human
Sample Type:
Cell Lysate (BeWo cell lysate)
-
