RayBio® Human RAGE ELISA Kit for cell culture supernatants, plasma, and serum samples.

Lead time: Typically ships within 1-2 business days. No Friday shipments.

As low as $420.00
In stock
Only %1 left
Catalog #:
ELH-RAGE
-
+

Product Description

Specifications

Size 1 Plate Kit, 2 Plate Kit, 5 Plate Kit
Species Human
Accession Number Q9UQ07
Gene Id 5891
Gene Symbols MOK|RAGE|RAGE1
Protein Name / Synonyms MAPK/MAK/MRK overlapping kinase (EC 2.7.11.22) (MOK protein kinase) (Renal tumor antigen 1) (RAGE-1)
Quantitative/Semi-Quantitative Quantitative
Specificity This ELISA kit shows no cross-reactivity with the following cytokines tested: human Angiogenin, BDNF, BLC, ENA-78, FGF- 4, IL-1 alpha, IL-1 beta, IL-2, IL-3, IL-4, IL-5, IL-6, IL-7, IL-8, IL-9, IL-11, IL-12 p70, IL-12 p40, IL-13, IL-15, I-309, IP-10, G-CSF, GM-CSF, IFN-gamma, Leptin (OB), MCP-1, MCP-2, MCP-3, MDC, MIP-1 alpha, MIP-1 beta, MIP-1 delta, PARC, PDGF, RANTES, SCF, TARC, TGF-beta, TIMP-1, TIMP-2, TNF-alpha, TNF-beta, TPO, VEGF.
Compatible Sample Types Cell Culture Supernatants, Plasma, Serum
Solid Support 96-well Microplate
Method Of Detection Colorimetric
Design Principle Sandwich-based
Sensitivity 3 pg/ml

Need more sensitivity? Check out the new BIQ-ELISAâ„¢ kit for this target. Still not enough? Then your answer is our Ultrasensitive Biomarker Testing Service powered by Simoa technology.

Detection Range 3 pg/ml - 1500 pg/ml
Estimated Lead Time 1-2 business days
Shipping Type Blue ice
Storage ≤-20°C

Risk-Free Guarantee

We offer a 100% guarantee on all ELISA kits and membrane cytokine arrays.

Learn More
Amazon Gift Cards!

$5 Amazon gift card in every kit box purchased.

Product Features

Additional Notes
  • Strip plates and additional reagents allow for use in multiple experiments
  • Quantitative protein detection
  • Establishes normal range
  • The best products for confirmation of antibody array data

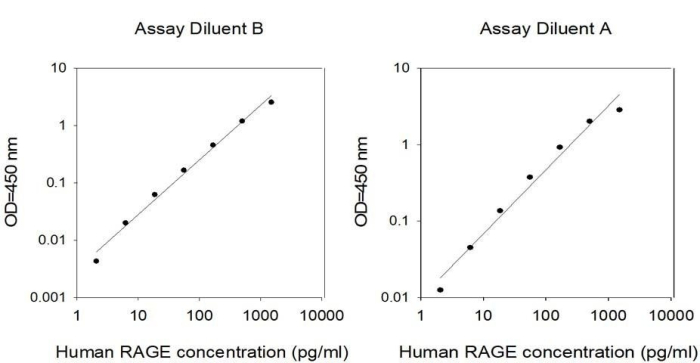

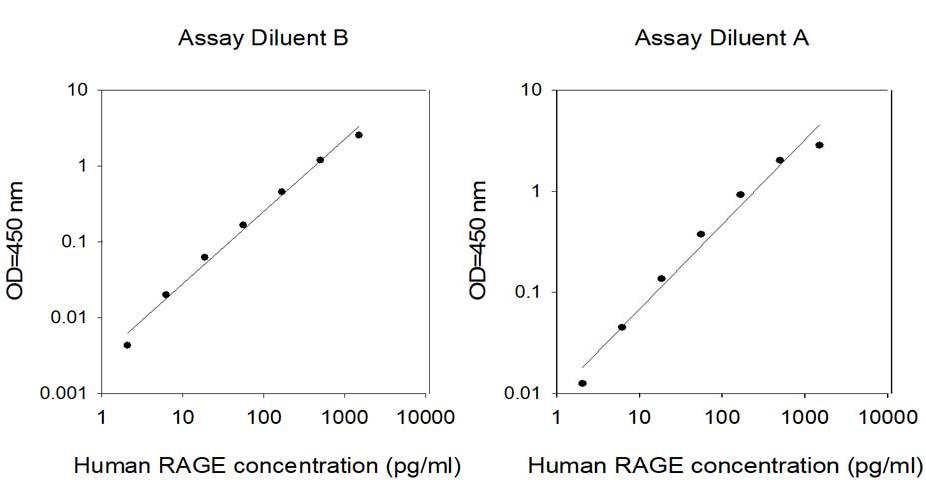

Standard Curves

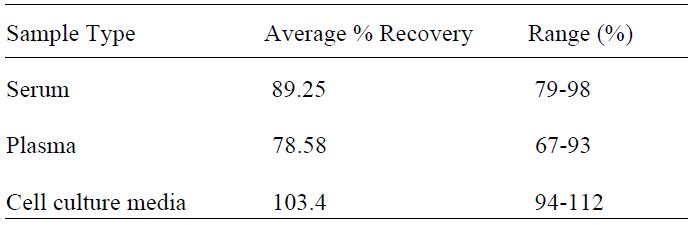

Spiking & Recovery Results

Linearity Results

Application Notes

Kit Components
  • Pre-Coated 96-well Strip Microplate
  • Wash Buffer
  • Stop Solution
  • Assay Diluent(s)
  • Lyophilized Standard
  • Biotinylated Detection Antibody
  • Streptavidin-Conjugated HRP
  • TMB One-Step Substrate
Other Materials Required
  • Distilled or deionized water
  • Precision pipettes to deliver 2 µl to 1 µl volumes
  • Adjustable 1-25 µl pipettes for reagent preparation
  • 100 µl and 1 liter graduated cylinders
  • Tubes to prepare standard and sample dilutions
  • Absorbent paper
  • Microplate reader capable of measuring absorbance at 450nm
  • Log-log graph paper or computer and software for ELISA data analysis
Protocol Outline
  1. Prepare all reagents, samples and standards as instructed in the manual.
  2. Add 100 µl of standard or sample to each well.
  3. Incubate 2.5 h at RT or O/N at 4°C.
  4. Add 100 µl of prepared biotin antibody to each well.
  5. Incubate 1 h at RT.
  6. Add 100 µl of prepared Streptavidin solution to each well.
  7. Incubate 45 min at RT.
  8. Add 100 µl of TMB One-Step Substrate Reagent to each well.
  9. Incubate 30 min at RT.
  10. Add 50 µl of Stop Solution to each well.
  11. Read at 450 nm immediately.

Need your results faster? Try RayBiotech's SpeedELISA platform for quantitative detection in just three hours.

Storage/Stability

The entire kit may be stored at -20°C for up to 1 year from the date of shipment. Avoid repeated freeze-thaw cycles. The kit may be stored at 4°C for up to 6 months. For extended storage, it is recommended to store at -80°C.
Chima, Ranjit S., et al. "C-peptide, a novel inhibitor of lung inflammation following hemorrhagic shock." American Journal of Physiology-Lung Cellular and Molecular Physiology 300.5 (2011): L730-L739.
Species:
Human
Sample Type:
Plasma
Alt?ngöz SM, Kurgan ?, Önder C, Serdar MA, Ünlütürk U, Uyan?k M, Ba?kal N, Tatakis DN, Günhan M. Salivary and serum oxidative stress biomarkers and advanced glycation end products in periodontitis patients with or without diabetes: A cross-sectional study. J Periodontol. 2020 Dec 5. doi: 10.1002/JPER.20-0406. Epub ahead of print. PMID: 33277933.
Species:
Human
Sample Type:
Serum (venipuncture)
Birala BK., Perumal V., Gohil NK. Glycated serum albumin stimulates expression of endothelial cell specific molecule-1 in human umbilical vein endothelial cells: Implication in diabetes mediated endothelial dysfunction. Diab Vasc Dis Res. 2015 Jul;12(4):290-7. doi: 10.1177/1479164115583192.
Species:
Human
Sample Type:
Conditioned Media (HUVEC cells)
Bala K., Gohil N. Interaction of glycated protein and DFO mimicked hypoxia in cellular responses of HUVECs. Mol Biosyst. 2012 Oct;8(10):2657-63. doi: 10.1039/c2mb25156f.
Species:
Human
Sample Type:
Conditioned Media (HUVEC cells under hypoxia)
Bala, Kanchan, James Gomes, and Nivedita Karmakar Gohil. "Interaction of glycated human serum albumin with endothelial cells in a hemodynamic environment: structural and functional correlates." Molecular BioSystems 7.11 (2011): 3036-3041.
Species:
Human
Sample Type:
Cell Lysate (HUVEC)
Nirala B., Gohil N. Effect of garlic component s-allyl cysteine sulfoxide on glycated human serum albumin induced activation of endothelial cells: an in vitro study. Eur Rev Med Pharmacol Sci. 2015;19(11):2125-31.
Species:
Human
Sample Type:
Cell Lysate (HUVEC cells treated with advanced glycosylation end products)
Nirala B., Gohil NK. EFFECT OF GLYCATED SERUM ALBUMIN ON FUNCTIONAL MARKERS IN HUMAN UMBILICAL VEIN ENDOTHELIAL CELLS IN THE PRESENCE OF SHEAR STRESS. J. Mech. Med. Biol. DOI: 10.1142/S0219519415500268
Species:
Human
Sample Type:
Cell Lysate (HUVEC Cells)
Bediwy A., Hussan S., El-Najjar M. Receptor of advanced glycation end products in childhood asthma exacerbation. Egyptian Journal of Chest Diseases and Tuberculosis. Volume 65, Issue 1, January 2016, Pages 15-18
Species:
Human
Sample Type:
Serum (Asthma child patients from ER)
